Dyno with Zeel and ypvs control
TZR125 Track Dyno
Today tested the ypvs control with the Zeel.
Have changed a three wire servo to a five wire servo.
Remove the oem circuitboard, and only use the five wires.
ZEEL to YPVS (three wire)
--------------------------------------------------------------
YELLOW on RED
VIOLET on ORANGE
--------------------------------------------------
ORANGE on WHITE
BLUE on YELLOW/GREEN
WHITE on BLUE/WHITE

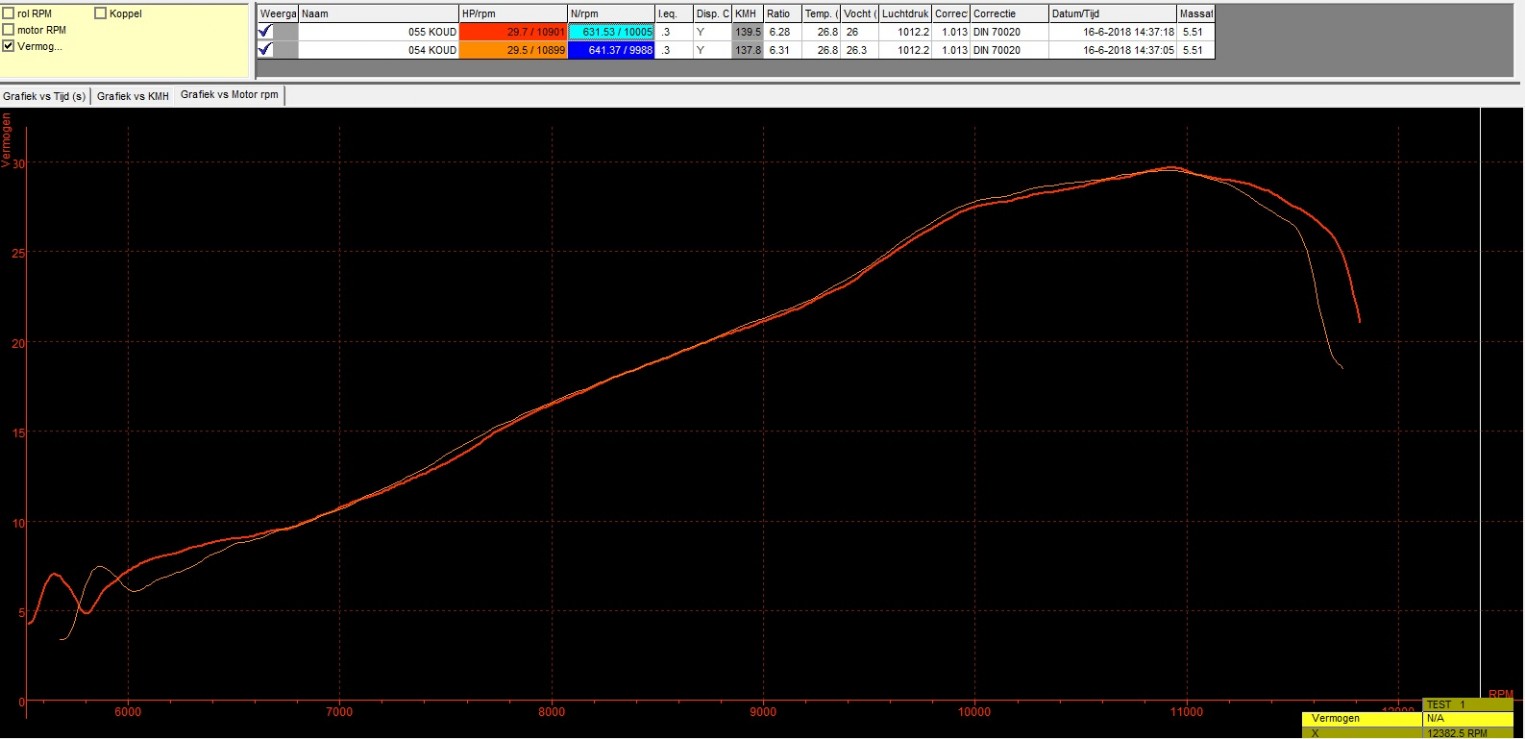

I had some lucky shots with 29,7 and 29,5HP but this is with a cooler engine
![](images/max-met-ypvs.jpg)

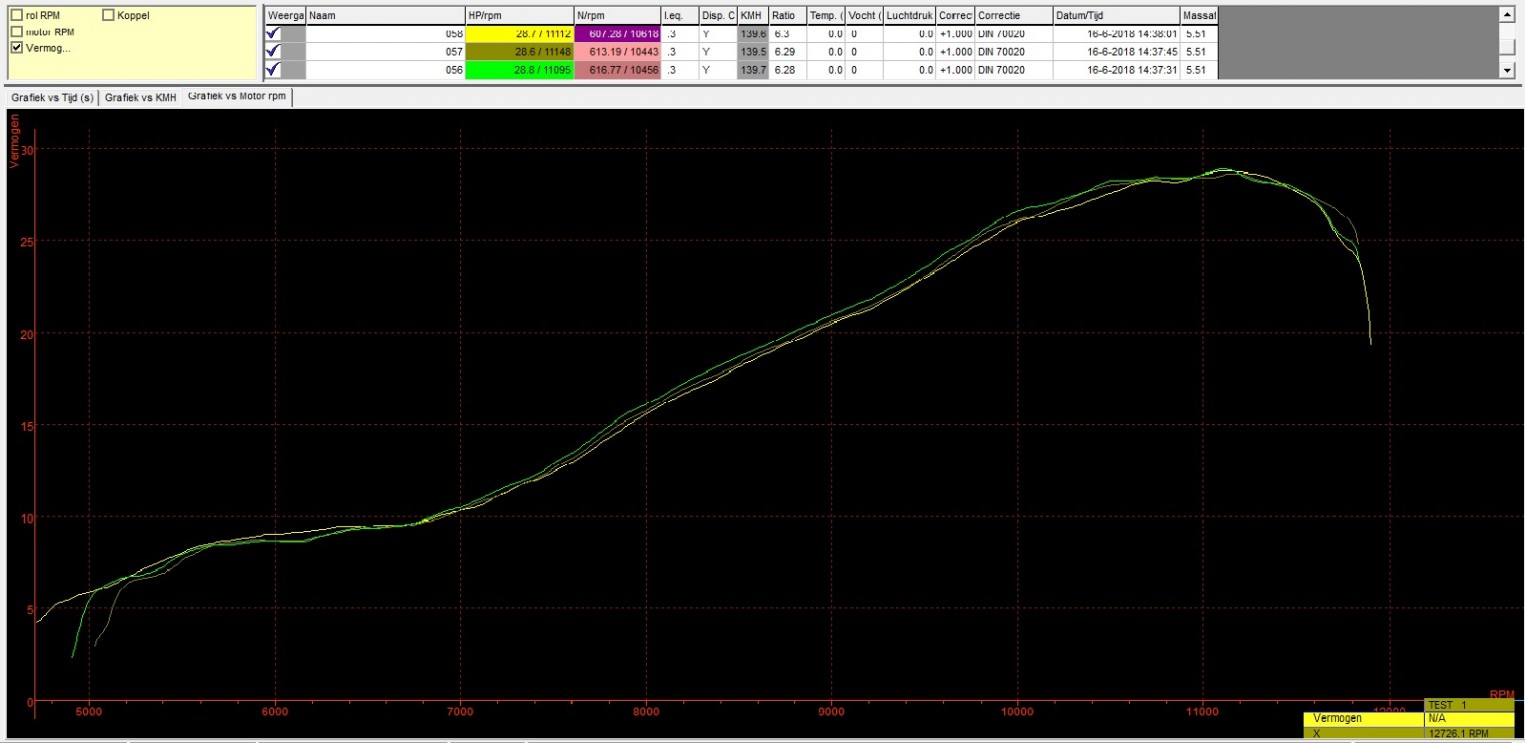

On average I had 28,7's
![](images/gemiddeld-28,7.jpg)

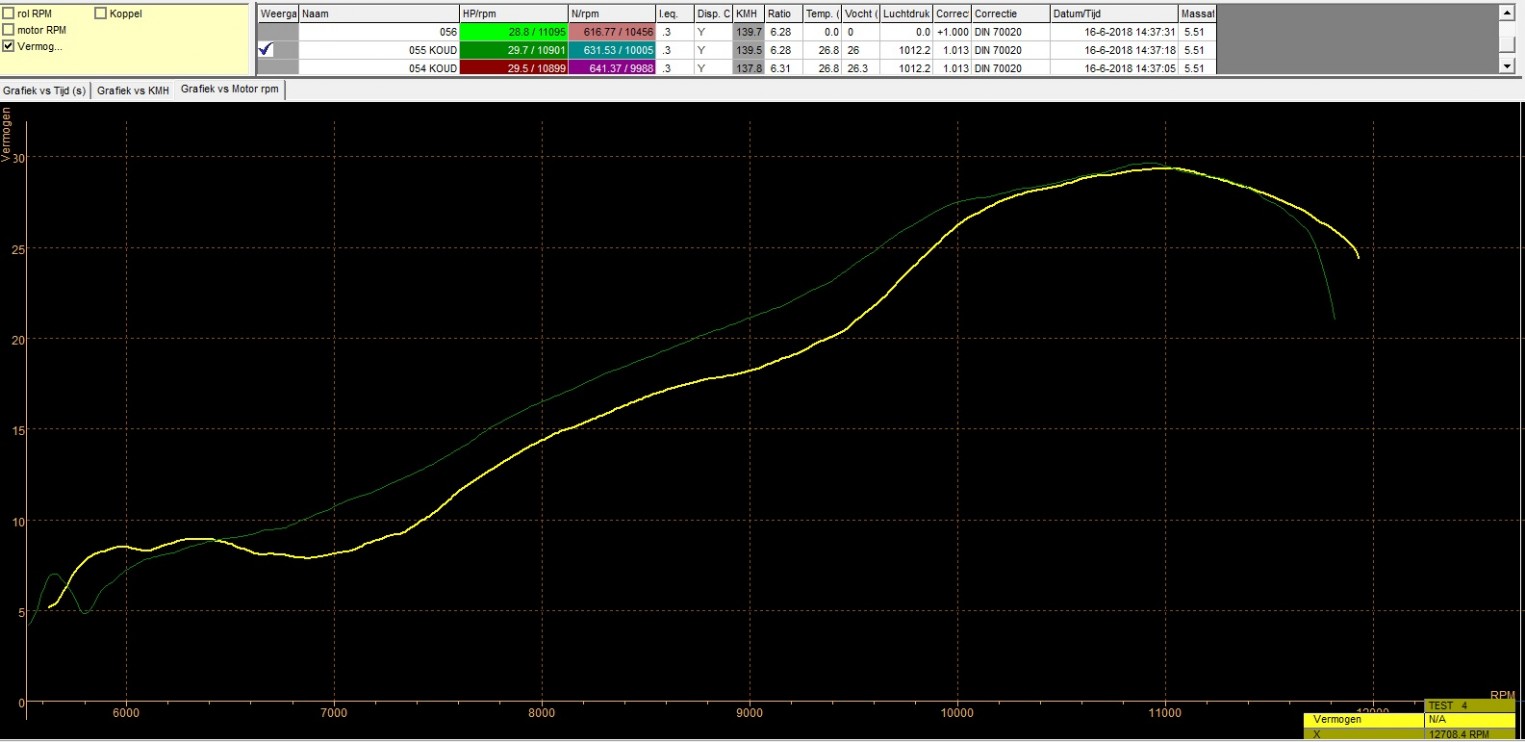

Here you see the difference between more advance in the mid section with a better YPVS curve, you can gain quit a lot (green curve)
![](images/29,7-vs-29,3.jpg)

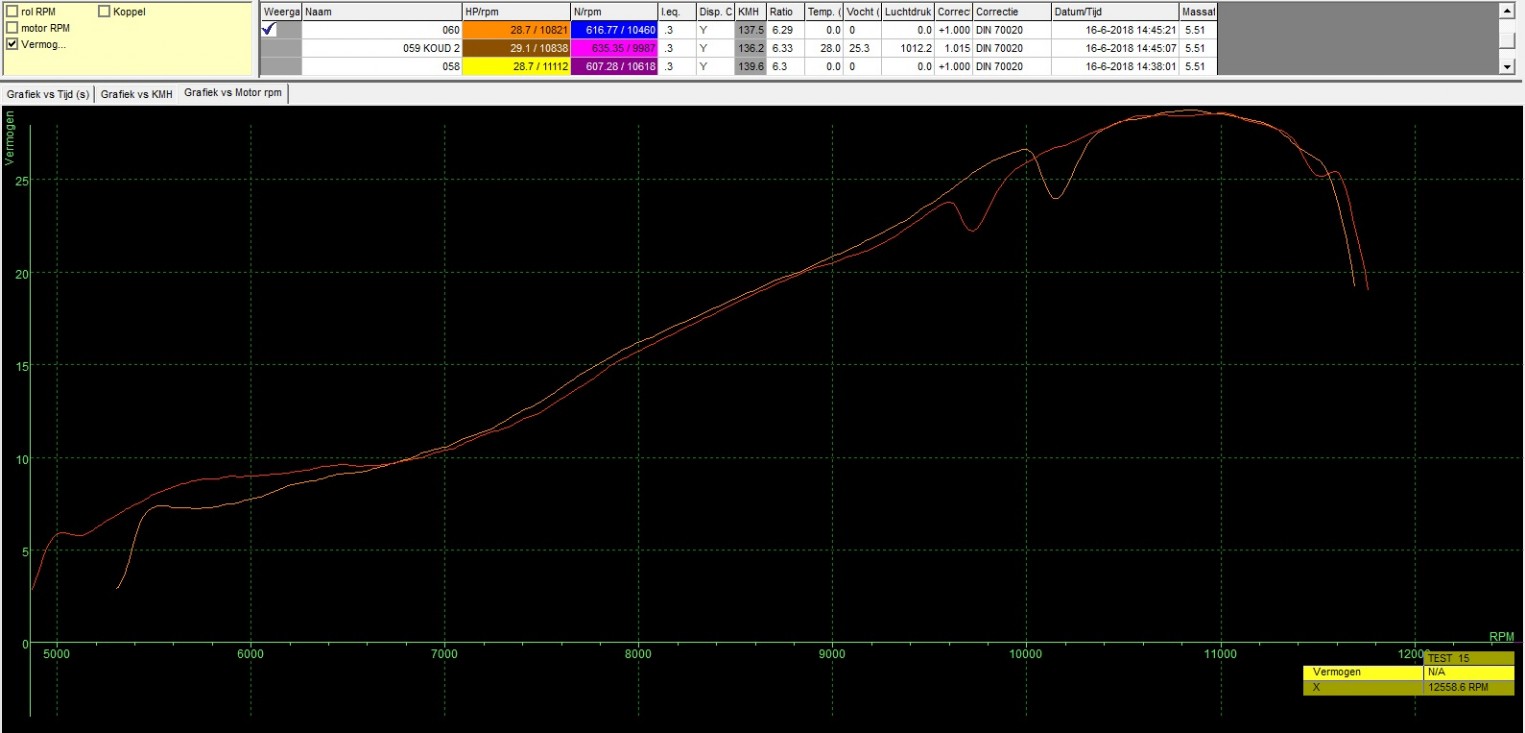

A small concern is the ignition had some miss firings in the beginning
![](images/hik.jpg)
Here one off the last setup's

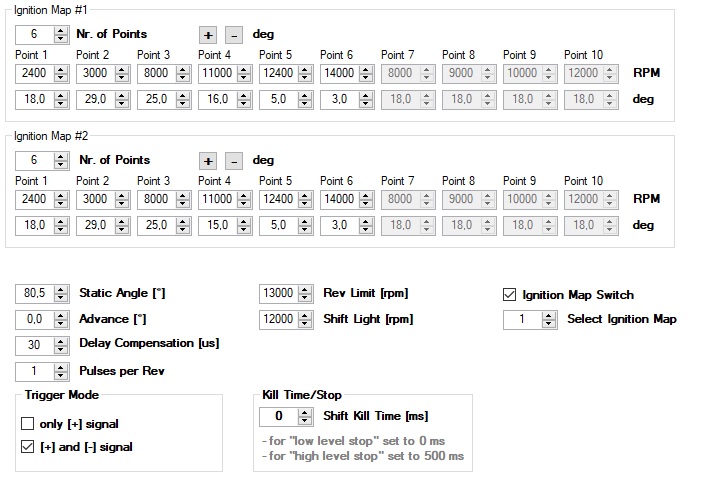

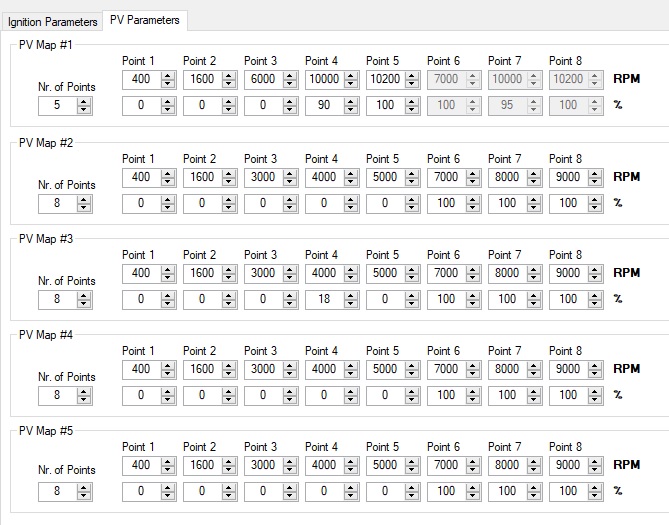

Ignition setup YPVS setup (map 1)
![](images/zeel-nu.jpg)
![](images/ypvs-nu.jpg)

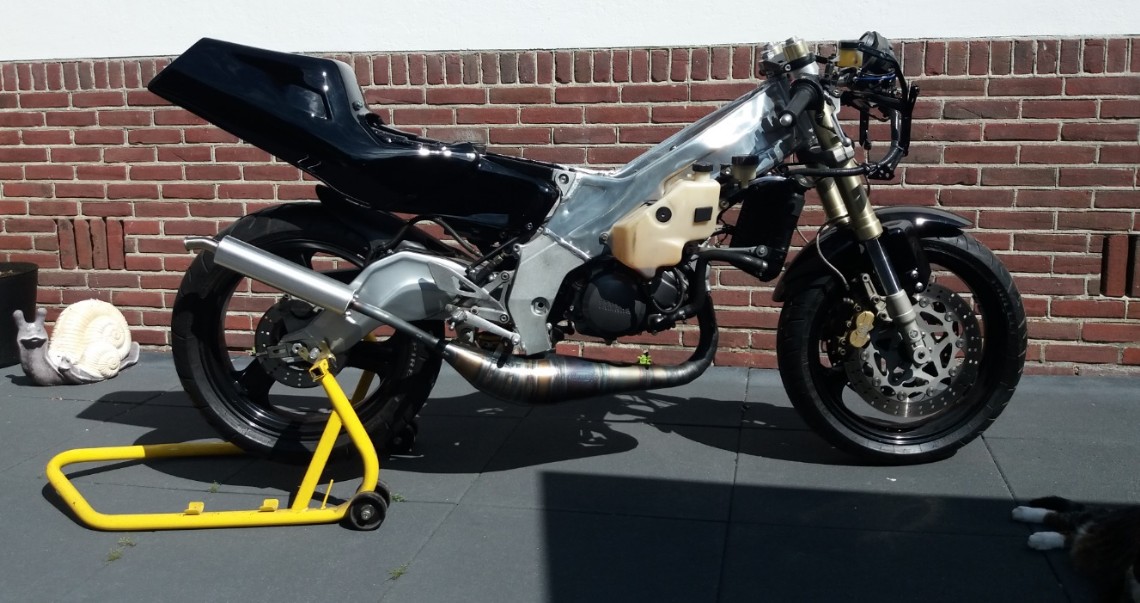

Brought the Bike back to my workshop
![](images/weer-thuis.jpg)

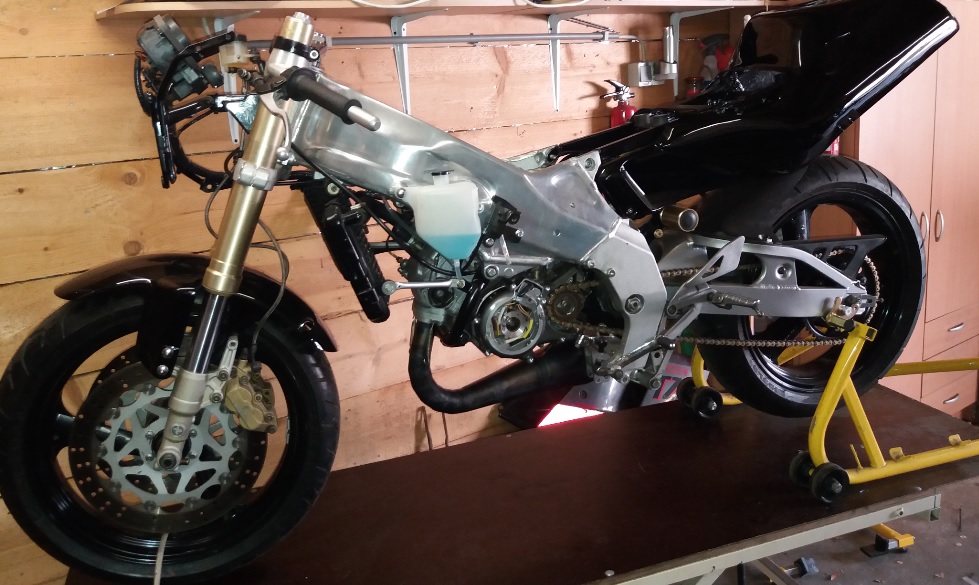

Ready for some head measurements, as I hope to gain some there
![](images/weer-op-bok.jpg)
